1. Introduction to FB090 Bronze Wrapped Bushings

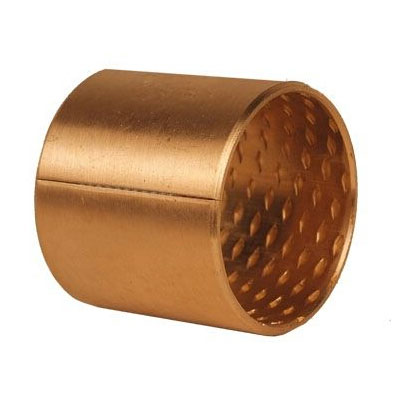

The FB090 is a wrapped bushing (wrapped bearing). It is not manufactured using traditional casting or forging processes but is produced by precision stamping, rolling, and finishing a special bronze alloy strip.
Core Materials & Structure:
Base Material: Typically a high-strength tin bronze with a high tin content (e.g., CuSn8), sometimes with added alloying elements to enhance properties.
Surface Layer: Its most distinctive feature is a regular pattern of diamond-shaped or honeycomb-shaped oil pockets on the inner (working) surface. These pockets are usually filled with solid lubricants such as graphite, PTFE (polytetrafluoroethylene), or molybdenum disulfide.
Structure: It is a thin-walled bushing, often featuring one or more locating lips (lugs) to prevent rotation during installation.
Working Principle:
The FB090 bushing falls into the category of “self-lubricating bearings” or “maintenance-free bearings.” Its operation does not rely on an external forced oil supply system. During operation:
Initially, the solid lubricant, under the influence of frictional heat and pressure, transfers uniformly to the surface of the mating shaft, forming a low-friction transfer film.
Simultaneously, the oil pocket structure can retain a small amount of grease (typically pre-applied during initial installation) and provide supplementary lubrication during operation.
This combination of “solid lubricant transfer film + grease supplement + the inherent good wear resistance of the bronze matrix” delivers excellent long-term lubrication performance.
2. Core Advantages of FB090 Bronze Wrapped Bushings
Excellent Self-Lubrication & Maintenance-Free Operation: The core advantage. Particularly suitable for “lifetime lubrication” or sealed locations where regular greasing is impossible or difficult, significantly reducing maintenance costs and downtime.
High Load-Carrying Capacity: The bronze matrix material offers high hardness and compressive strength, enabling it to withstand extremely high static and dynamic loads, making it ideal for heavy-duty and shock load conditions.
Superior Wear Resistance & Long Service Life: The bronze material itself is wear-resistant, and the protection from the solid lubricant effectively reduces wear on both the shaft and the bushing, extending the service life of both components.
Good Corrosion Resistance: Bronze material has good resistance to water, humid environments, and many chemical media, making it suitable for outdoor and harsh environments.
Good Thermal Conductivity: Bronze can rapidly conduct away heat generated by friction, preventing heat buildup that could lead to lubrication failure or material softening.
Cost-Effectiveness & Design Flexibility: Compared to solid bronze bushings, the wrapped manufacturing process saves material, reduces weight, and lowers cost. The thin-walled design also saves installation space.
3. Application in Forestry Machinery
Forestry machinery (such as harvesters, felling heads, skidders, chippers, forwarders) operates in extremely harsh conditions: high shock loads, low-speed heavy loads, exposure to dirt/dust/moisture, severe vibration, large temperature variations, and difficult maintenance. The characteristics of the FB090 bushing perfectly match these demands
Typical Application Points and Value:
Working Arm Joints of Harvesters/Felling Heads
Location: Various pivot points between the boom, arm, and swing cylinders.
Value: These joints endure massive shocks and eccentric loads from grabbing, swinging, and cutting trees. The FB090’s high load capacity and impact resistance ensure joint stability. Its self-lubricating nature prevents rapid wear and seizure common in plain bushings due to contamination from dirt and water, drastically reducing the frequency of field bearing replacements.
Rotation and Pivot Pins for Grapples and Grapple Teeth
Location: Rotation base of the wood grapple, pivot pins for individual jaw opening/closing.
Value: These parts are in frequent motion and directly contact wood and debris. The FB090’s wear resistance and self-lubrication ensure reliable and smooth operation of the grapple, preventing sluggish movement or jamming due to poor lubrication, which would impact operational efficiency.
Drive Linkage Mechanisms for Wood Shearing/Cutting Devices
Location: Linkage pins connecting hydraulic cylinders to the cutting knives/shear blades.
Value: The cutting action generates extremely high peak loads. The FB090 bushing effectively withstands these shocks, and its solid lubricant film maintains good lubrication even under high pressure, protecting the expensive cutting mechanism.
Swing and Connection Points in Undercarriage/Walking Gear
Location: Pivot pins for balance beams, links for bogie wheels, and track rollers on forwarders or skidders.
Value: The undercarriage suffers constant vibration and shock when the machine travels over rough, uneven forest terrain. The FB090’s wear and impact resistance enhance the reliability and durability of the suspension system, adapting to complex ground conditions.
External Linkage Mechanisms for Hydraulic Components
Location: Linkage connection points for controlling hydraulic valves or deflectors.
Value: These locations are often cramped, difficult to seal, and hard to lubricate. Using FB090 enables maintenance-free operation and reduces potential failure points.
Conclusion
The FB090 Bronze Wrapped Bushing, with its unique design of a high-strength bronze matrix + embedded solid lubricants, is a classic engineering solution for applications demanding low-speed heavy loads, shock loads, harsh environments, and maintenance-free operation.
In the typical application field of forestry machinery, it directly addresses core challenges such as high impact, high contamination, moisture, and difficult maintenance. It is widely used in critical load-bearing points like working arm joints, grapples, and cutting devices, significantly improving equipment reliability, durability, and availability (uptime), while effectively reducing the total cost of ownership over the machine’s lifecycle. It is an indispensable key component in modern high-performance forestry equipment.
